M410 Label Printer EU

Name: M410 Label Printer EU
SKU: M410-EU
Price: 285

Overview Specifications Support Recommendations

Product Highlights

Continuous vs Die Cut Labels:

Continuous and Die-cut
Stand Alone Printing:

Stand-alone & Peripheral
Max. Label Width (mm):

25.40 mm
Colour Capability:

Monocolour
Print Technology:

Thermal Transfer
Resolution (dpi):

300 dpi
Recommended Usage per Day:

250
Application(s):

Asset tracking, Component and equipment labelling, Data and telecommunications labelling, Electrical labelling, Facility identification, General identification, Inventory and inspection labelling, Laboratory labelling, Wire and cable labelling

M410 Label Printer EU Add To Compare In Compare

Order Reference:

M410-EU

Contact Customer Service

Authentic materials are required to print with the M410 - learn more

Shop for labels

M410 - Questions & answers

Get a demo

Overview

Specifically engineered for premium 25.40 mm printing, the M410 Label Printer is an everyday workhorse for DataCom, electrical and lab professionals.

Print pre-sized or continuous labels up to 25.40 mm wide with edge-to-edge printing
110+ hassle-free drop-in cartridges with 12+ purpose-built materials to take on whatever your work demands
Get seamless cartridge changes with an easy-swap locking mechanism while a window in the door allows you to easily remember what's installed
Create and print two ways — the intuitive QWERTY keypad or a PC
Designed to withstand 1.2 m drops and challenging work environments
Enhanced exterior colouring for jobsite visibility
Ships with the free Brady Workstation Basic Design suite that includes fundamental apps and features to create labels.
Backlit LCD graphics display for easier labelling in low-lit areas

Your toughest labelling jobs just got a lot easier

Over 110 labels up to 25 mm wide — more options, including pre-sized labels, than other 25 mm label printers
Edge to edge printing — more room to fit the data you need with no label waste
Flexibility for any jobsite — Design and print labels on your computer with Brady Workstation Software or on the fly at your jobsite
Easy to use onboard menu options — label design guides reduce errors and save time
Intuitive QWERTY keypad — create labels with ease using the familiar keyboard format

M410 Label Printer Overview

Get the job done right on any jobsite

An worker using an M410 label printer to create labels for a complex server configuration.

Datacom & Telecom

Keep compliant with protective self-lams and flags
Convey more information printing edge to edge
Communicate better with patch panel and faceplate ID

Wire & Cable and Electrical

Use 1 tool for multiple on-site applications
Create pre-set label options
Wrap, sleeve, tag and flag through challenging work

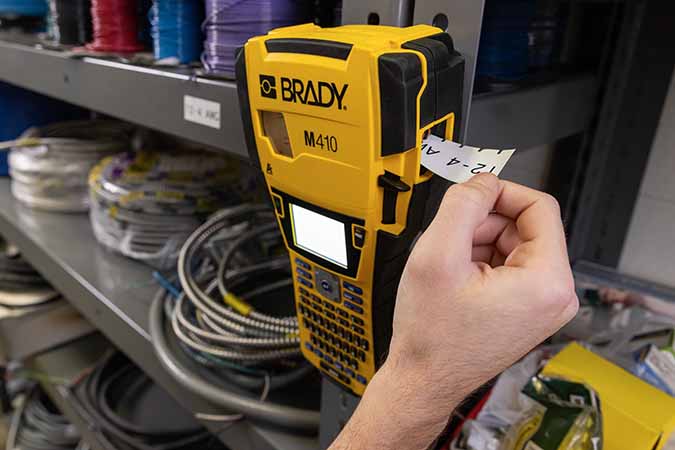

A worker prints a label using an M410 printer that is conveniently stuck with a magnet to a shelf rack.

General Identification

Do more with a surplus of sizes, colours and materials
Easily locate equipment, assets and batches
Take on tough jobsites with purpose-built materials

Designed to handle whatever your work demands — explore the M410

A M710 printing a roll of heat shrink labels.

Upload and go
Import data through the USB port

A roll of label material being loaded into a M710 printer.

Faster changeovers
Simple all-in-one drop-in cartridges

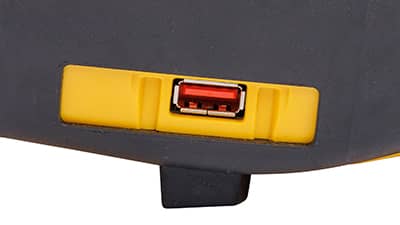

USB-A and USB-C ports on the side of the M710 printer.

Fit for many applications
Pre-sized and continuous labels (6.10 mm to 25.40 mm width)

A battery being inserted in the bottom of the M710 printer.

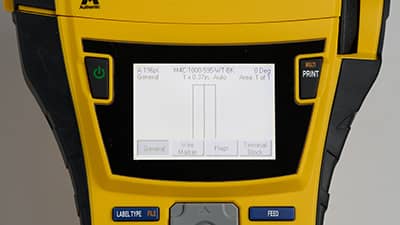

Label design guides
Reduce errors and save time with intuitive guides

Brady Authentic materials - a premium labeling experience

Brady Authentic materials work seamlessly with the M410 Printer to produce enhanced performance and reliability. The M410 Printer is not compatible with non-Authentic materials: non-Brady manufactured or materials from earlier generation Brady printers. Check for the insignia!

Download the old-to-new material conversion sheet

Hundreds of purpose-built materials for the applications you need

A few M410 label materials you should know about:
Material	Wire & Cable	Electrical & Datacom	Component & Equipment	Safety & Facility	General ID
Multi-Purpose Nylon	Yes	Yes	Yes	Yes	Yes
All-Weather Vinyl	Yes	Yes	Yes	Yes	Yes
Heat-Shrink Sleeves *	Yes	No	No	No	No
Self-Laminating Vinyl Wraps *	Yes	Yes	No	No	No
Flags *	Yes	Yes	No	No	No
Metallised Matte Polyester	No	No	Yes	No	Yes
All-Weather Reflective	No	No	No	Yes	No
BradyGrip Hook Labels for VELCRO Brand Hook *	No	Yes	No	No	No
Repositionable Multi-Purpose Vinyl	Yes	Yes	No	No	Yes

Asterisks (*) indicate materials that are unique to Brady.

Shop all M410 material options

Request a sample

Specifications

Key Characteristics


Key Characteristics	Article Number	177180
	Order Reference	M410-EU
	Total Qty per Pack	1 Piece(s) / Box
	Minimum Order Quanitity	1
	Application(s)	Asset tracking, Component and equipment labelling, Data and telecommunications labelling, Electrical labelling, Facility identification, General identification, Inventory and inspection labelling, Laboratory labelling, Wire and cable labelling
	Quantity	1
	Brand	Brady®
	Trade Name	M410
	Country of Origin	MY

Dimensions


Dimensions	Size - Width (mm)	152.40 mm
	Size - Height (mm)	292.10 mm
	Size - Depth (mm)	88.90 mm
	Weight (kg)	1.18 kg
	Display Size	34.92 x 50.80 mm
	Min. Label Width (mm)	6.10 mm
	Dimensions	152,40 mm (W) x 292,10 mm (H) x 88,90 mm (D)

Material Characteristics


Material Characteristics	Materials Supported	BradyGrip® Polyester, FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallised Polyester, Nylon Cloth, Paper, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, Vinyl, Vinyl Cloth
	Colour	Yellow, Black

Product Features


Product Features	Battery mAh Rating	1200 mAh
	Bar Code Type	Code 128, Code 39, More through Brady WorkStation
	Auto Shut Off	10 minutes, User Configurable
	Battery Type	Rechargeable NiMH Battery
	Battery Weight (metric)	254.00 g
	Built-in Symbols	480
	Language Support	Bulgarian, Chinese (Traditional & Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French, German, Hungarian, Italian, Japanese, Norwegian (Bokmål), Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Spanish (Mexico), Swedish, Turkish
	Calibration	Automated through Smart Cell
	Connectivity Options	USB
	Custom Labels Available	No
	Cutter	Single Hand Manual Actuate, Straight Cut, With label retention
	Display Type	Monocolour LCD Screen
	How Is Battery Shipped	Shipped installed in equipment
	Interface Type	Full QWERTY Keyboard, PC
	Internal Memory Capacity	48 MB (stores up to 25,000 labels)
	Barcode Symbologies - 2D	More through Brady Workstation
	Keyboard Type	QWERTY
	Operating Humidity Range	20%-90% (non-condensing)
	Operating Temperature	4°C - 43°C
	Stand Alone Printing	Stand-alone & Peripheral
	Power Source	AC Adaptor, Rechargeable Battery
	Power Supply Voltage	110 - 240 V
	Printing Wizards	66 Block, Breaker Box, DesiStrip, Flags, General, Patch Panel, Terminal Block, Wire Wrap
	Recharge Time	4 hours
	Shipped With Battery	Yes
	Storage humidity	10%-90% (non-condensing)
	Storage Temperature	-18°C - 43°C
	Charging Times	Charging over battery charger (0 - 100%) 4h

Printing Specifications


Printing Specifications	Print Technology	Thermal Transfer
	Print Speed (mm/sec)	33.02 mm/s
	Printing Functions	Auto Format, Banner, Date/Time Stamp, Fixed Length, Mirror, Print Preview, Reverse, Serialisation, Vertical
	Colour Capability	Monocolour
	Resolution (dpi)	300 dpi
	Display Resolution	240 x 160 pixels
	Max. Label Width (mm)	25.40 mm
	Max. Liner Width (mm)	33.27 mm
	Recommended Usage per Day	250
	Max. Print Width (mm)	25.40 mm
	Max. Print Length (mm)	990.60 mm
	Text Sizes (pt)	4 - 103 pt
	Font Styles	Brady Alpine, Brady Fixed Width
	Symbol Categories	Arrows, Datacom, Electrical, Exit, Fire Safety, First Aid, GHS/CLP, Greek, Home Electrical, HSID, International, Laboratory, Mandatory, Miscellaneous, Packaging, Personal Protective Equipment, Prohibition, Public Information, Safety, Warning, WHIMIS
	Number of Stock Parts	110+ standard parts
	On Screen Indicators	Battery Life, Ribbon and label part number recognition, Supply Remaining
	Print Rotation	Yes
	Drop Test	Resistant to 1.2 metre drops
	Serialisation	Simple & Simultaneous & Single Advanced & Multiple Advanced
	Smart Cell	Yes

Compatibility


Compatibility	Continuous vs Die Cut Labels	Continuous and Die-cut
	Software Compatibility	Brady Workstation, Windows based driver for 3rd party software use
	B- Numbers supported	B-342, B-403, B-412, B-414, B-417, B-422, B-423, B-425, B-427, B-428, B-430, B-483, B-483A, B-488, B-498, B-499, B-581, B-584, B-595, B-7425, B-7641
	Compatible Media	M4-, M4C-
	Min. Label Length (mm)	6.10 mm
	Min. Liner Width (mm)	20.65 mm

What's Included


What's Included	Includes	This M410 Printer ships in a cardboard box with a rechargeable NiMH Battery Pack, an AC Adapter, B-595 Vinyl label Cartridge, a Quick start Guide, a USB Cable, a Brady Workstation Basic Design Software Suite and a USB Flash Drive with Driver and User Manual.
	Warranty	2 years

Compliance


Compliance	UNSPSC	45101520
	RoHS Compliance Status	Compliant with Directive 2011/65/EU and 2015/863
	REACH SVHC Status	Part contains an SVHC
	REACH Candidate List Date	23 January 2024
	Approval/Compliance	CE, UKCA
	Printer can be shipped to	Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Botswana, Brazil - Non-Government Companies, British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, Cayman Islands, Central African Republic, Chad, Chile, China, Colombia, Comoros, Costa Rica, Croatia, Cyprus, Czech Republic, Denmark, Djibouti, Dominica, Dominican Republic, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Greenland, Grenada, Guadeloupe, Guam, Guatemala, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Iraq, Ireland, Israel, Italy, Ivory Coast, Jamaica, Japan, Kazakhstan, Kiribati, Kosovo, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Libya, Liechtenstein, Lithuania, Luxembourg, Macau, Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands, Martinique, Mauritania, Mauritius, Mayotte, Mexico, Micronesia, Moldova, Monaco, Mongolia, Montenegro, Montserrat, Morocco, Mozambique, Myanmar [Burma], Nauru, Netherlands, New Zealand, Nicaragua, Nigeria, Norway, Oman, Pacific Islands Trust Territory, Pakistan, Palau, Palestinian Territories, Panama, Paraguay, Peru, Philippines, Poland, Portugal, Puerto Rico, Qatar, Republic of Congo, Réunion, Romania, Rwanda, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Samoa, San Marino, São Tomé and Príncipe, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, South Korea, South Sudan, Spain, Sri Lanka, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Thailand, Timor-Leste, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turks and Caicos Islands, Tuvalu, U.S. Virgin Islands, Ukraine (Excluding Crimea Region), United Arab Emirates, United Kingdom, United States, Uruguay, Vanuatu, Vatican City, Venezuela, Vietnam, Yemen, Zimbabwe
	Safe Use Instructions	SUI_Systems.pdf
